PE100 Pressure Water Pipes
EN 12201-2 compliant pressure water supply systems.
DN 20–1200 | SDR 41–7.4 | PN 6–16 bar | Application: Water supply, artesian wells
Installation Principles
Installation must follow applicable installation standards and engineering practice. Key considerations:
Proper
bedding preparation
Controlled
compaction zones
Correct
fusion joint assembly (butt or electrofusion welding)
Compliance
with pressure rating and burial depth requirements relative to PN class
Performance Characteristics
Strength
Long-term hydrostatic strength per MRS 10 rating (PE100)
resistance
Impact resistance performance
tightness
Joint tightness under defined testing conditions
tolerance
Dimensional tolerance compliance
behavior
Long-term behavior under internal pressure and soil load
System Overview
STRONIX PE100 pressure water pipes are designed for pressurized water supply networks where hydrostatic strength, fusion joint integrity and long-term dimensional stability are critical. The system is engineered in accordance with EN 12201-2 requirements and supported by documented Factory Production Control.
Technical Characteristics
-
Standard: EN 12201-2
-
Construction: Solid wall
-
Material: Polyethylene (PE 100)
-
Nominal Diameters: DN 20–1200
-
Pressure Class (SDR): SDR 26/21/17/11 (PN 6/8/10/16)
-
Joint Type: Butt or electrofusion welding
-

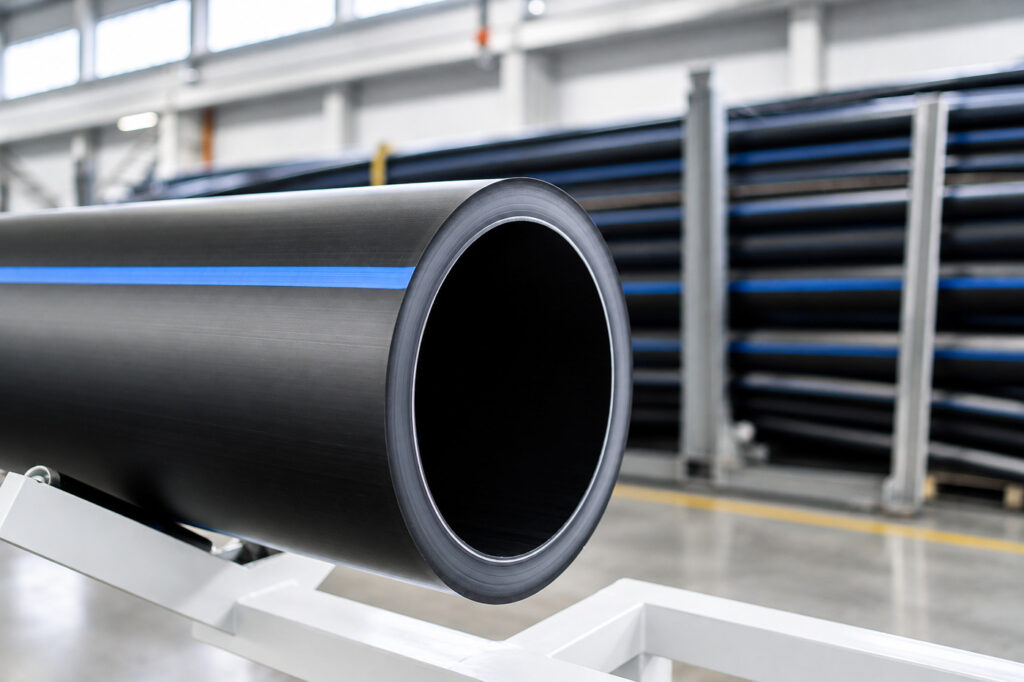

Color: Black with blue longitudinal stripes
-
Marking: Batch traceability + standard reference
Traceability & Quality
Each STRONIX pipe is marked with production batch and standard reference. Internal production controls and periodic testing ensure compliance with declared properties.
