PP Structured-Wall Sewer Pipes
EN 13476-3 compliant non-pressure drainage and sewer systems.
DN/ID 200–1000 | SN classes | Application: External gravity sewer

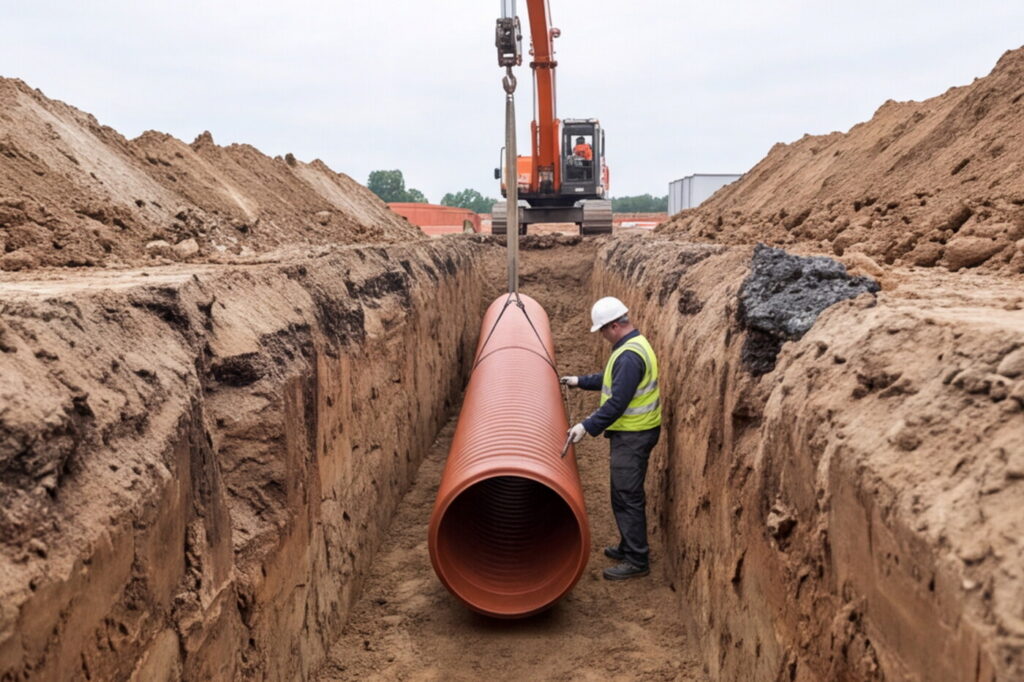

Installation Principles
Installation must follow applicable installation standards and engineering practice. Key considerations:
Proper
bedding preparation
Controlled
compaction zones
Correct
joint assembly
Compliance
with burial depth requirements relative to SN class
Performance Characteristics
Stiffness
Ring stiffness performance according to declared SN class
resistance
Impact resistance performance
tightness
Joint tightness under defined testing conditions
tolerance
Dimensional tolerance compliance
behavior
Long-term structural behavior under soil load
System Overview

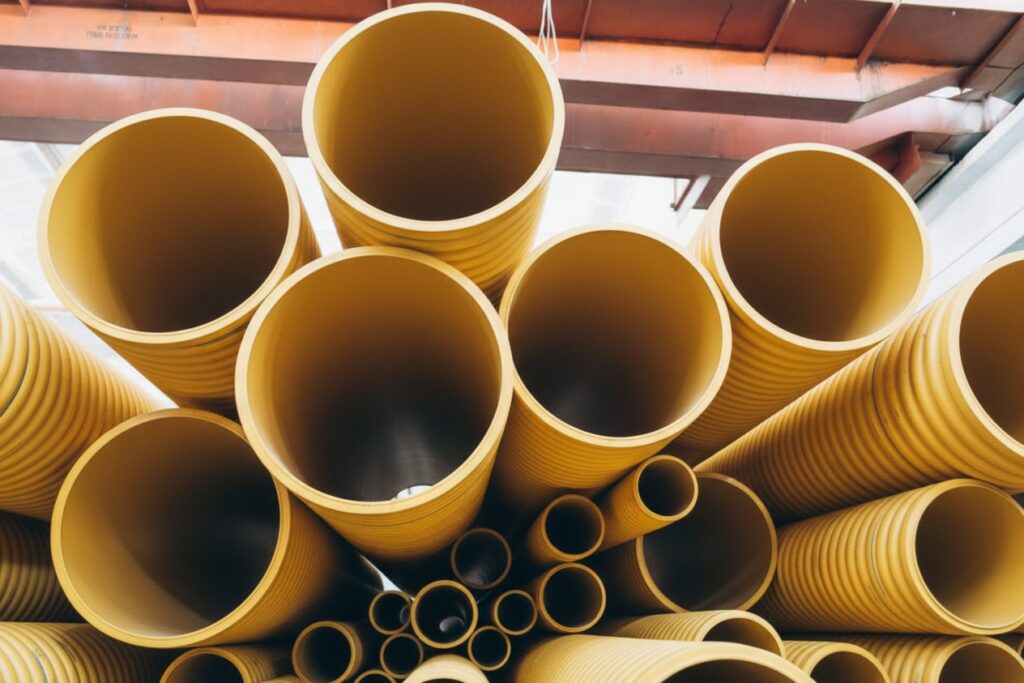

STRONIX PP structured-wall pipes are designed for underground non-pressure sewer and drainage networks where ring stiffness, joint integrity and long-term dimensional stability are critical. The system is engineered in accordance with EN 13476-3 requirements and supported by documented Factory Production Control.
Technical Characteristics
-
Standard: EN 13476-3
-
Construction: Structured wall Type B
-
Material: Polypropylene (PP)
-
Nominal Diameters: DN/ID 200–1000
-
Ring Stiffness: SN8 / SN10 / SN16
-
Joint Type: Socket connection with elastomeric seals
-
Color: Upon request
-
Marking: Batch traceability + standard reference
Technical Characteristics
-
Standard: EN 13476-3
-
Construction: Structured wall Type B
-
Material: Polypropylene (PP)
-
Nominal Diameters: (define DN range)
-
Ring Stiffness: SN8 / SN10 / SN16
-
Joint Type: (define gasket / coupling type)
-
Color: (define)
-
Marking: Batch traceability + standard reference
Traceability & Quality

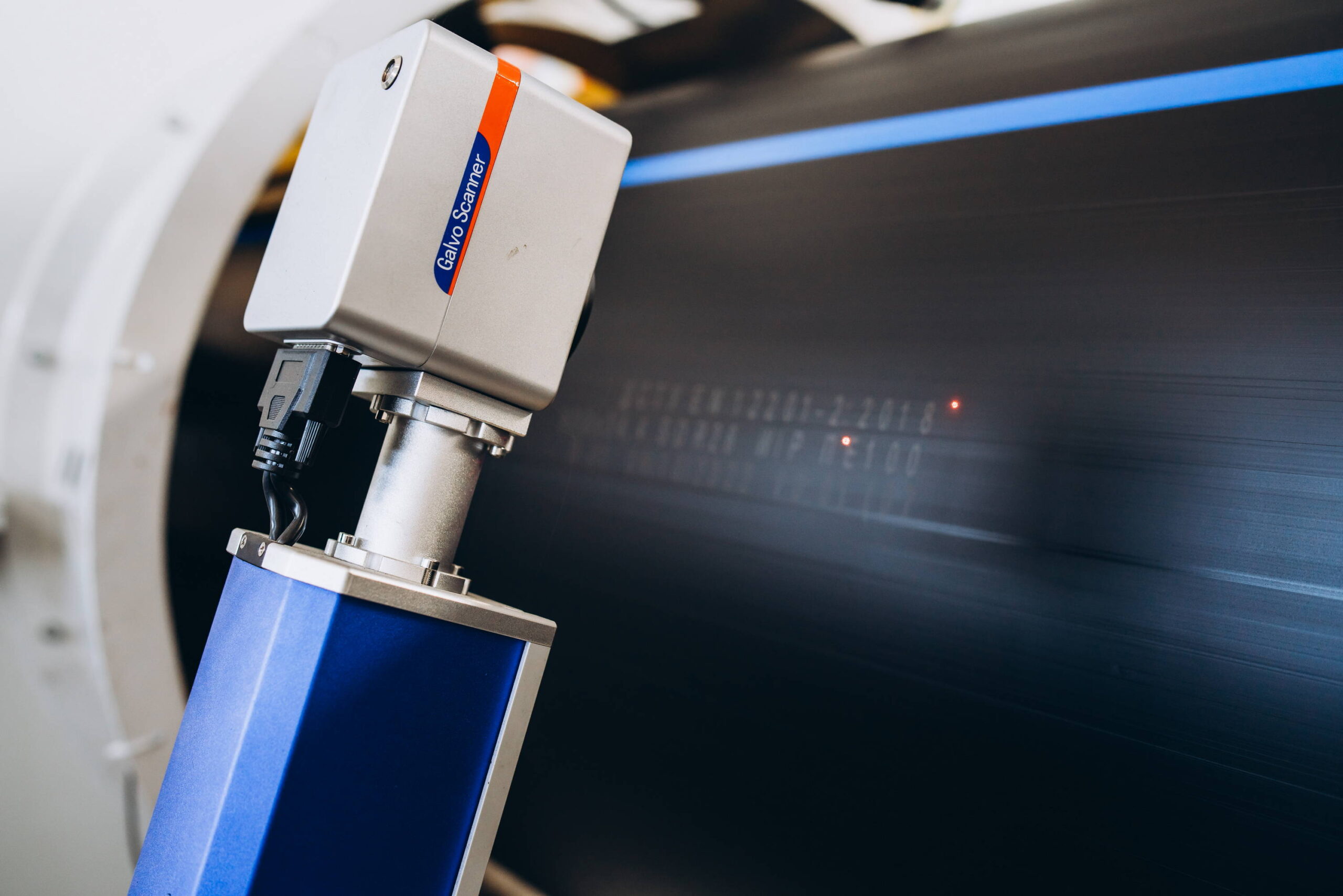

Each STRONIX pipe is marked with production batch and standard reference. Internal production controls and periodic testing ensure compliance with declared properties.
Traceability & Quality
Each STRONIX pipe is marked with production batch and standard reference. Internal production controls and periodic testing ensure compliance with declared properties.
